Fortinet Compatible Transceivers
Fortinet RAN-QSFP+SR compatible module

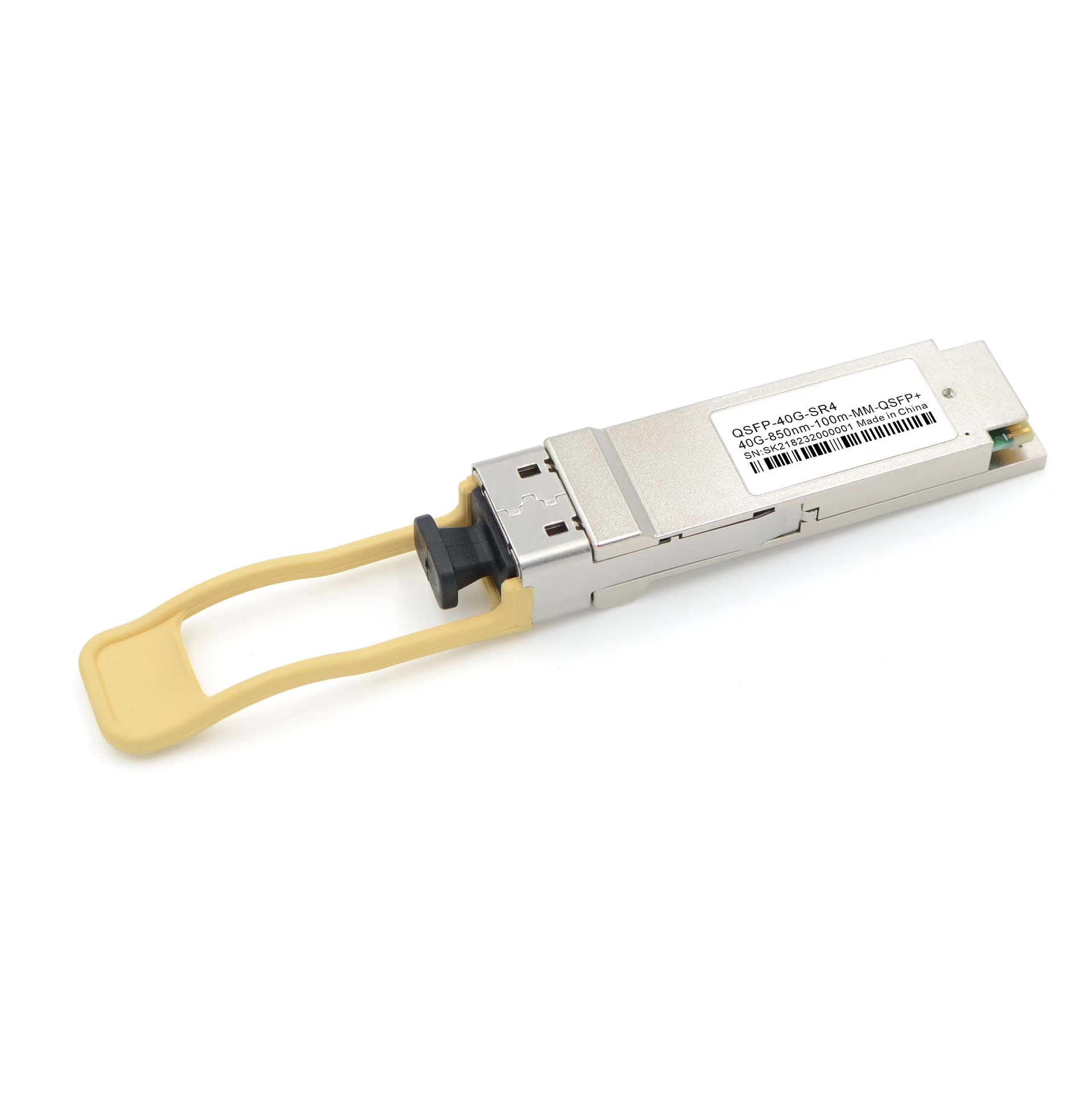

Fortinet RAN-QSFP+SR Compatible QSFP+ Transceiver – 40G SR Optical Module (MMF, MPO, 100m)
Fortinet RAN-QSFP+SR Compatible QSFP+ Transceiver – 40G SR Optical Module (MMF, MPO, 100m)
Product Overview
The Fortinet RAN-QSFP+SR compatible module is a high-performance 40G QSFP+ optical transceiver designed for short-range data transmission over multimode fiber (MMF). As a fully compatible alternative to the original Fortinet module, it delivers reliable 40Gbps connectivity for data centers, enterprise networks, and high-speed switching environments.
Designed for seamless interoperability with Fortinet networking equipment, this module provides stable performance, low latency, and efficient high-density connectivity using MPO fiber infrastructure.
Key Features
- 40G QSFP+ High-Speed Transmission Supports up to 40Gbps data rate for high-bandwidth applications.
- Short Reach (SR) Connectivity Supports distances up to 100 meters over OM3/OM4 multimode fiber.
- MPO/MTP Multi-Fiber Interface Enables parallel optical transmission for high-density deployments.
- Fully Fortinet Compatible Designed for seamless operation with Fortinet switches and security devices.
- Hot-Pluggable QSFP+ Form Factor Allows easy installation and replacement without downtime.
- Low Power Consumption Optimized for energy-efficient operation in dense environments.
Technical Specifications
Specification | Details |
|---|---|
Form Factor | QSFP+ |
Data Rate | 40Gbps |
Wavelength | 850nm |
Fiber Type | Multimode Fiber (MMF) |
Connector | MPO/MTP (12-fiber) |
Max Distance | 100m (OM3/OM4) |
Transmitter Type | VCSEL |
Receiver Type | PIN |
Compatibility | Fortinet RAN-QSFP+SR |
Operating Temperature | 0°C to 70°C |
Power Consumption | Low Power |
Benefits
- High-Density Connectivity MPO interface supports scalable and efficient cabling in modern data centers.
- Reliable 40G Performance Stable transmission for mission-critical applications.
- Cost-Effective Solution Provides full compatibility at a lower cost than OEM modules.
- Easy Deployment Plug-and-play installation reduces operational complexity.
Use Cases
- Data Center Interconnects High-speed connections between switches, servers, and storage.
- Enterprise Network Upgrades Enable seamless migration to 40G infrastructure.
- Aggregation & Core Layers Support high-throughput switching environments.
- Cloud & Virtualized Environments Deliver consistent performance for cloud workloads.
Why Choose This Compatible Module?
The RAN-QSFP+SR compatible transceiver delivers dependable 40G performance, seamless Fortinet compatibility, and optimized high-density connectivity. It is an ideal solution for organizations seeking scalable and cost-efficient optical networking.
