Cisco Compatible SFP-10GBX-D-1550-80 10GBASE BiDi Optical Transceiver (LC Simplex, 1550nm/1490nm, 80km)
Product Overview
The Cisco compatible SFP-10GBX-D-1550-80 BiDi optical transceiver is a high-performance 10Gbps module designed for ultra long-distance single-fiber transmission over single-mode fiber (SMF). Operating at 1550nm transmit / 1490nm receive wavelengths, it supports transmission distances up to 80 kilometers, making it ideal for telecom backbone networks, long-haul links, and metro infrastructure deployments.

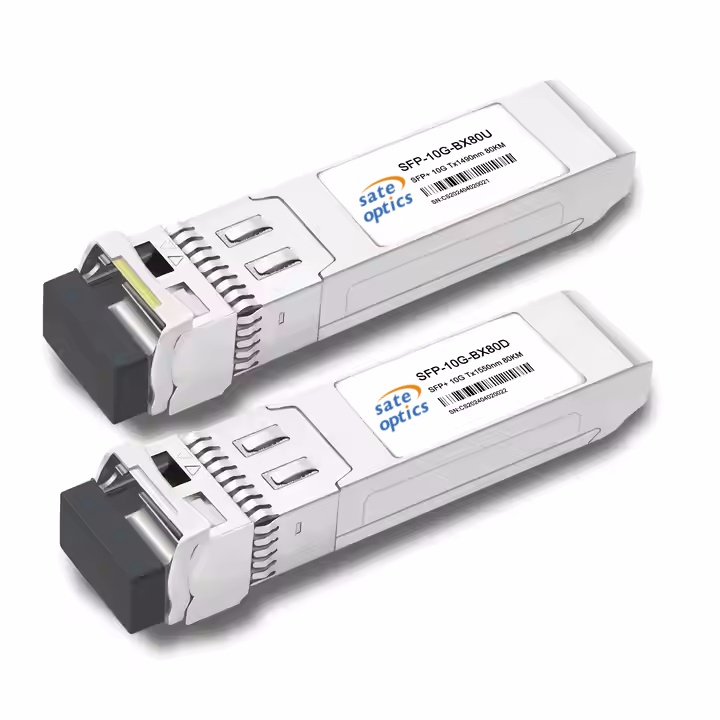

This SFP+ BiDi module features a single LC simplex connector, enabling full-duplex communication over a single fiber strand. When paired with the SFP-10GBX-U-1490-80, it forms a complete 10G bidirectional link while significantly reducing fiber infrastructure costs.
Key Features
- Supports data rates up to 10Gbps
- BiDi (Bidirectional) transmission technology
- Wavelength: 1550nm TX / 1490nm RX
- Transmission distance up to 80km over SMF
- LC Simplex connector (single-fiber operation)
- Fully compliant with SFP+ MSA standards
- Hot-pluggable for easy deployment
- Built-in Digital Diagnostic Monitoring (DDM/DOM)
- High-power optical design for ultra long reach
- 100% compatible with Cisco BiDi ports (custom coding available)
- RoHS compliant and Class 1 laser safety certified
Technical Specifications
Parameter | Specification |
|---|---|
Form Factor | SFP+ |
Data Rate | 10Gbps |
Wavelength | 1550nm TX / 1490nm RX |
Fiber Type | Single-Mode Fiber (SMF) |
Max Distance | 80km |
Connector | LC Simplex |
Transmission Type | BiDi (Bidirectional) |
Laser Type | High-Power EML/DFB Laser |
Receiver Type | APD Photodiode |
Output Power | +3 ~ +7 dBm |
Receiver Sensitivity | ≤ -24 dBm |
Extinction Ratio | > 4 dB |
Power Consumption | < 3.0W |
Operating Temperature | 0°C to 70°C (Commercial) |
Storage Temperature | -40°C to 85°C |
Protocols Supported | IEEE 802.3ae, SFP+ MSA |
Digital Diagnostics | Yes (DDM/DOM Supported) |
Applications
- Ultra long-distance 10G Ethernet transmission
- Telecom backbone and core networks
- Metropolitan and regional network links
- Data center interconnect (DCI) over extended distances
- Enterprise WAN and inter-city connectivity
- High-capacity switch and router uplinks
Compatibility
This module is fully compatible with Cisco BiDi-enabled equipment and is designed to operate as part of a matched pair with SFP-10GBX-U-1490-80. It can also be custom-coded for Huawei, Juniper, HPE, Arista, and other major networking platforms.
Why Choose This SFP-10GBX-D-1550-80 Module?
- Enables ultra long-reach BiDi transmission up to 80km
- Works as part of a matched single-fiber pair solution
- Reduces fiber infrastructure costs by 50%
- Fully tested for compatibility and performance
- Ideal for telecom and carrier-grade deployments
- OEM/ODM support including labeling and coding customization
- Reliable supply for large-scale infrastructure projects
Ordering Information
Part Number | Description |
|---|---|
SFP-10GBX-D-1550-80-C | 10G BiDi SFP+ Transceiver, LC Simplex, SMF, 80km |
