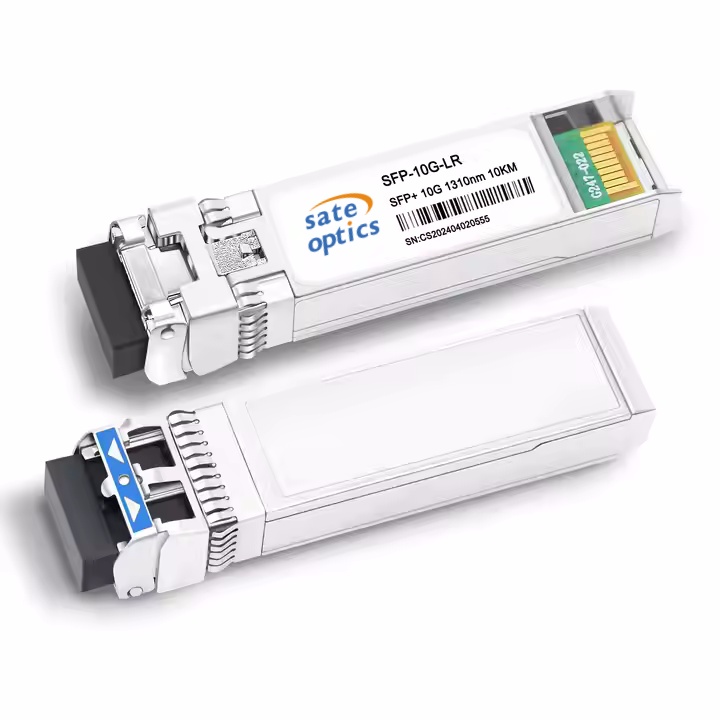

Cisco Compatible SFP-10G-LR 10GBASE-LR Optical Transceiver (LC Duplex, 1310nm, 10km)

Product Overview

The Cisco compatible SFP-10G-LR optical transceiver is a high-performance 10Gbps module designed for long-range transmission over single-mode fiber (SMF). Operating at a 1310nm wavelength, it supports transmission distances up to 10 kilometers, making it ideal for campus, metro, and long-distance enterprise network deployments.
This hot-swappable SFP+ module complies with industry standards and ensures seamless interoperability with Cisco switches, routers, and other networking equipment. It provides a reliable and cost-effective solution for extending 10G connectivity beyond short-range limitations.


Key Features

  • Supports data rates up to 10Gbps
  • 1310nm DFB laser for long-distance transmission
  • Transmission distance up to 10km over SMF
  • LC Duplex connector
  • Fully compliant with SFP+ MSA and IEEE 802.3ae 10GBASE-LR
  • Hot-pluggable design for easy deployment
  • Low power consumption (<1.5W)
  • Integrated Digital Diagnostic Monitoring (DDM/DOM)
  • 100% compatible with Cisco devices (custom coding supported)
  • RoHS compliant and Class 1 laser safety certified


Technical Specifications

Parameter
Specification
Form Factor
SFP+
Data Rate
10Gbps
Wavelength
1310nm
Fiber Type
Single-Mode Fiber (SMF)
Max Distance
10km
Connector
LC Duplex
Transmitter Type
DFB Laser
Receiver Type
PIN Photodiode
Output Power
-8.2 ~ 0.5 dBm
Receiver Sensitivity
≤ -14.4 dBm
Extinction Ratio
> 3.5 dB
Power Consumption
< 1.5W
Operating Temperature
0°C to 70°C (Commercial)
Storage Temperature
-40°C to 85°C
Protocols Supported
IEEE 802.3ae, SFP+ MSA
Digital Diagnostics
Yes (DDM/DOM Supported)


Applications

  • 10G Ethernet long-distance connectivity
  • Enterprise campus backbone networks
  • Metropolitan Area Networks (MAN)
  • Data center interconnect (DCI)
  • Telecom and ISP infrastructure
  • Switch-to-switch and router-to-router links


Compatibility

This module is fully compatible with a wide range of Cisco equipment and can be custom-coded for other major brands such as Huawei, Juniper, HPE, Arista, and more.


Why Choose This SFP-10G-LR Module?

  • Cost-effective alternative to original Cisco optics
  • Reliable performance for long-distance transmission
  • Fully tested for compatibility and stability
  • Fast delivery and consistent stock availability
  • OEM/ODM support including labeling and coding customization
  • Proven solution for multi-vendor network environments


Ordering Information

Part Number
Description
SFP-10G-LR-C
10GBASE-LR SFP+ Transceiver, LC, SMF, 10km
