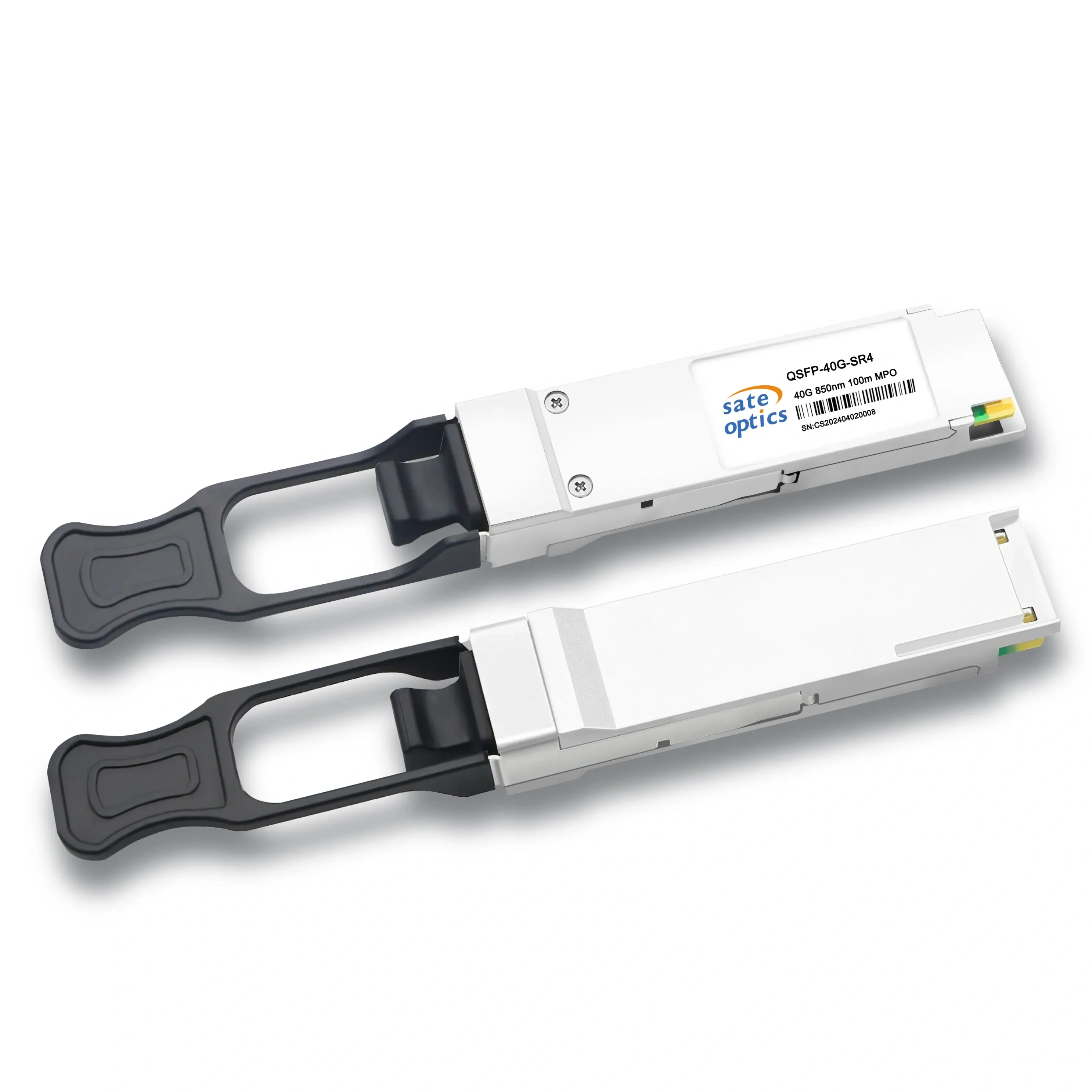

Cisco Compatible QSFP-40G-SR4 40GBASE-SR4 QSFP+ Optical Transceiver (MPO, 850nm, 100m)
Product Overview
The Cisco compatible QSFP-40G-SR4 optical transceiver is a high-performance 40Gbps module designed for short-range data transmission over multimode fiber (MMF). Operating at an 850nm wavelength, it supports distances up to 100 meters on OM3 fiber and 150 meters on OM4 fiber.
This QSFP+ module uses an MPO/MTP multi-fiber connector and transmits data over 4 parallel lanes (4x10G), making it ideal for high-density data center environments requiring fast and reliable 40G connectivity.
Key Features
- Supports aggregate data rate of 40Gbps (4x10Gbps lanes)
- 850nm VCSEL array for parallel optical transmission
- Transmission distance up to 100m (OM3) / 150m (OM4)
- MPO/MTP 12-fiber connector
- Fully compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4
- Hot-pluggable QSFP+ form factor
- Low power consumption (<1.5W)
- Built-in Digital Diagnostic Monitoring (DDM/DOM)
- High port density for data center applications
- 100% compatible with Cisco devices (custom coding available)
- RoHS compliant and Class 1 laser safety certified
Technical Specifications
Parameter | Specification |
|---|---|
Form Factor | QSFP+ |
Data Rate | 40Gbps (4 × 10Gbps) |
Wavelength | 850nm |
Fiber Type | Multimode Fiber (MMF) |
Max Distance | 100m (OM3), 150m (OM4) |
Connector | MPO/MTP (12-fiber) |
Transmitter Type | VCSEL Array |
Receiver Type | PIN Photodiode |
Lane Configuration | 4 Tx / 4 Rx |
Output Power | -7.6 ~ +2.4 dBm |
Receiver Sensitivity | ≤ -9.5 dBm |
Power Consumption | < 1.5W |
Operating Temperature | 0°C to 70°C (Commercial) |
Storage Temperature | -40°C to 85°C |
Protocols Supported | IEEE 802.3ba, QSFP+ MSA |
Digital Diagnostics | Yes (DDM/DOM Supported) |
Applications
- 40G Ethernet data center interconnects
- High-density switch-to-switch links
- Spine-leaf network architectures
- High-performance computing (HPC) clusters
- Enterprise aggregation networks
- Cloud infrastructure deployments
Compatibility
This module is fully compatible with Cisco switches and routers and can be custom-coded for other major networking platforms such as Huawei, Juniper, Arista, and more.
Why Choose This QSFP-40G-SR4 Module?
- Cost-effective alternative to original Cisco QSFP+ optics
- Optimized for short-reach high-density environments
- Fully tested for performance and compatibility
- Easy deployment with MPO cabling systems
- OEM/ODM support including labeling and coding customization
- Reliable supply for large-scale data center projects
Ordering Information
Part Number | Description |
|---|---|
QSFP-40G-SR4-C | 40GBASE-SR4 QSFP+ Transceiver, MPO, MMF, 100m |
