Cisco Compatible DWDM-SFP-XXXX | 1.25G/2.5G DWDM SFP Transceiver LC SMF 80km (C-Band)
Buy Cisco compatible 1.25G/2.5G DWDM SFP transceiver (CH21–CH59, C-Band), LC duplex, up to 80km over SMF. Ideal for high-density metro and telecom DWDM networks.

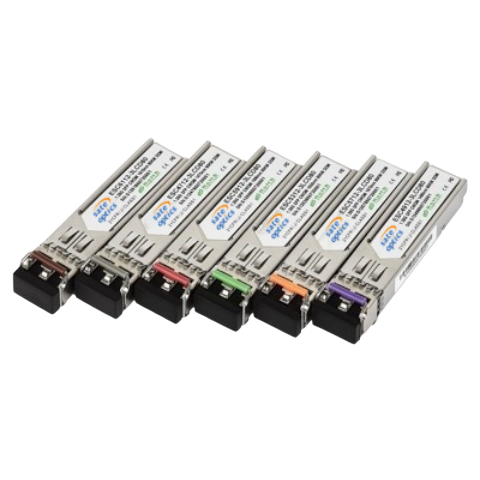

Cisco Compatible DWDM-SFP-XXXX 1.25G/2.5GBASE-DWDM SFP Optical Transceiver (LC Duplex, C-Band, CH21–CH59, 80km)
Product Overview
The Cisco compatible DWDM-SFP-XXXX optical transceiver is a high-performance 1.25Gbps / 2.5Gbps module designed for Dense Wavelength Division Multiplexing (DWDM) applications over single-mode fiber (SMF). Operating on the ITU-T DWDM C-Band grid, it supports channel options from CH21 to CH59, enabling multiple low-speed services to be transmitted over a single fiber pair with high spectral efficiency.
With a transmission reach of up to 80 kilometers, this SFP module is ideal for telecom access networks, metro aggregation, and enterprise optical transport systems requiring cost-effective DWDM deployment.
“XXXX” represents the DWDM channel (CH21–CH59) or corresponding ITU frequency.
Available Channel Options (Example)
Model Variant | ITU Channel | Frequency (THz) | Approx. Wavelength (nm) |
|---|---|---|---|
DWDM-SFP-CH21-80 | CH21 | 192.1 | ~1560.61 |
DWDM-SFP-CH25-80 | CH25 | 192.5 | ~1557.36 |
DWDM-SFP-CH29-80 | CH29 | 192.9 | ~1554.13 |
DWDM-SFP-CH33-80 | CH33 | 193.3 | ~1550.92 |
DWDM-SFP-CH37-80 | CH37 | 193.7 | ~1547.72 |
DWDM-SFP-CH41-80 | CH41 | 194.1 | ~1544.53 |
DWDM-SFP-CH45-80 | CH45 | 194.5 | ~1541.35 |
DWDM-SFP-CH49-80 | CH49 | 194.9 | ~1538.19 |
DWDM-SFP-CH53-80 | CH53 | 195.3 | ~1535.04 |
DWDM-SFP-CH57-80 | CH57 | 195.7 | ~1531.90 |
DWDM-SFP-CH59-80 | CH59 | 195.9 | ~1530.33 |
Key Features
- Supports data rates of 1.25Gbps and 2.5Gbps
- DWDM technology for high channel density transmission
- Operates on ITU-T C-Band DWDM grid (100GHz spacing typical)
- Channel range: CH21 to CH59
- Transmission distance up to 80km over SMF
- LC Duplex connector
- Compliant with SFP MSA and relevant telecom standards
- Hot-pluggable SFP form factor
- Built-in Digital Diagnostic Monitoring (DDM/DOM) (optional depending on version)
- Compatible with DWDM MUX/DEMUX systems
- High spectral efficiency for fiber optimization
- 100% compatible with Cisco platforms (custom coding available)
- RoHS compliant and Class 1 laser safety certified
Technical Specifications
Parameter | Specification |
|---|---|
Form Factor | SFP |
Data Rate | 1.25Gbps / 2.5Gbps |
Wavelength / Frequency | ITU-T DWDM C-Band |
Channel Spacing | 100GHz (0.8nm typical) |
Channel Range | CH21–CH59 |
Fiber Type | Single-Mode Fiber (SMF) |
Max Distance | 80km |
Connector | LC Duplex |
Transmitter Type | DFB Laser |
Receiver Type | APD Photodiode |
Output Power | +2 ~ +6 dBm |
Receiver Sensitivity | ≤ -28 dBm |
Extinction Ratio | > 3.5 dB |
Power Consumption | < 1.8W |
Operating Temperature | 0°C to 70°C (Commercial) |
Storage Temperature | -40°C to 85°C |
Protocols Supported | Gigabit Ethernet, SDH/SONET, Fiber Channel |
Digital Diagnostics | Yes (DDM/DOM Optional) |
Applications
- DWDM access and aggregation networks
- Telecom and ISP infrastructure
- Metro Area Networks (MAN)
- Enterprise optical transport systems
- SDH/SONET and Fiber Channel links
- Cost-effective multi-channel DWDM deployments
Compatibility
This module is fully compatible with Cisco switches and routers and can be custom-coded for Huawei, Juniper, HPE, and other major networking platforms. It integrates seamlessly with standard DWDM MUX/DEMUX systems.
Why Choose This DWDM-SFP-XXXX Module?
- Enables multiple low-speed channels over a single fiber pair
- Supports both 1.25G and 2.5G applications
- Ideal for cost-sensitive DWDM deployments
- Fully tested for compatibility and reliability
- OEM/ODM support including labeling and coding customization
- Reliable supply for telecom and enterprise projects
Ordering Information
Part Number | Description |
|---|---|
DWDM-SFP-XXXX-80-C | 1.25G/2.5G DWDM SFP, LC, SMF, 80km (Specify channel) |
