Cisco Compatible CWDM-SFP-XXXX-40D | 1G CWDM SFP Transceiver LC SMF 40km DDM
Buy Cisco compatible 1G CWDM SFP transceiver (1270–1450nm), LC duplex, up to 40km over SMF with DDM support. Ideal for metro and access CWDM networks.

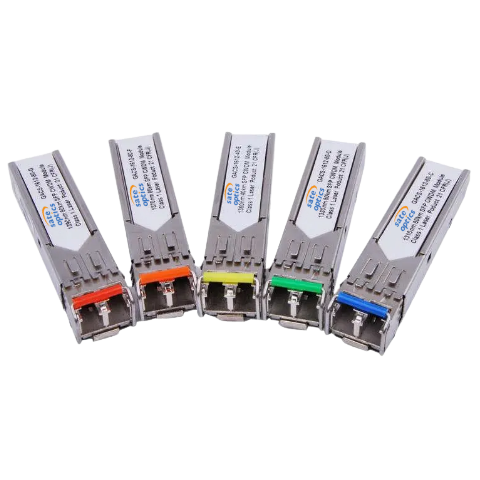

Cisco Compatible CWDM-SFP-XXXX-40D 1000BASE-CWDM SFP Optical Transceiver (LC Duplex, 1270–1450nm, 40km, DDM)
Product Overview
The Cisco compatible CWDM-SFP-XXXX-D optical transceiver is a high-performance 1Gbps CWDM module designed for long-distance transmission over single-mode fiber (SMF). Supporting wavelengths from 1270nm to 1450nm, it enables multiple Gigabit Ethernet channels over a single fiber pair using Coarse Wavelength Division Multiplexing (CWDM) technology.
With a transmission distance of up to 40 kilometers, this SFP module is ideal for metro access networks, enterprise connectivity, and telecom aggregation. It also supports Digital Diagnostic Monitoring (DDM), allowing real-time monitoring of optical parameters such as temperature, voltage, transmit power, and receive power.
“XXXX” represents the CWDM wavelength option (1270/1290/1310/1330/1350/1370/1390/1410/1430/1450nm).
Available Wavelength Options
Model Variant | Wavelength |
|---|---|
CWDM-SFP-1270-40D | 1270nm |
CWDM-SFP-1290-40D | 1290nm |
CWDM-SFP-1310-40D | 1310nm |
CWDM-SFP-1330-40D | 1330nm |
CWDM-SFP-1350-40D | 1350nm |
CWDM-SFP-1370-40D | 1370nm |
CWDM-SFP-1390-40D | 1390nm |
CWDM-SFP-1410-40D | 1410nm |
CWDM-SFP-1430-40D | 1430nm |
CWDM-SFP-1450-40D | 1450nm |
Key Features
- Supports data rates up to 1.25Gbps (Gigabit Ethernet)
- CWDM technology for multi-channel transmission
- Wavelength range: 1270nm to 1450nm
- Transmission distance up to 40km over SMF
- LC Duplex connector
- Compliant with SFP MSA and IEEE 802.3z
- Hot-pluggable SFP form factor
- Built-in Digital Diagnostic Monitoring (DDM)
- Compatible with standard CWDM MUX/DEMUX systems
- Low power consumption and high reliability
- 100% compatible with Cisco platforms (custom coding available)
- RoHS compliant and Class 1 laser safety certified
Technical Specifications
Parameter | Specification |
|---|---|
Form Factor | SFP |
Data Rate | 1.25Gbps |
Wavelength | 1270–1450nm (CWDM grid) |
Channel Spacing | 20nm |
Fiber Type | Single-Mode Fiber (SMF) |
Max Distance | 40km |
Connector | LC Duplex |
Transmitter Type | DFB Laser |
Receiver Type | PIN Photodiode |
Output Power | -2 ~ +3 dBm |
Receiver Sensitivity | ≤ -24 dBm |
Power Consumption | < 1.5W |
Operating Temperature | 0°C to 70°C (Commercial) |
Storage Temperature | -40°C to 85°C |
Protocols Supported | IEEE 802.3z, SFP MSA |
Digital Diagnostics | Yes (DDM Supported) |
Applications
- Gigabit Ethernet CWDM transmission systems
- Metro access and aggregation networks
- Telecom and ISP infrastructure
- Enterprise fiber connectivity
- Fiber capacity expansion using wavelength multiplexing
- Cost-effective multi-channel optical transport
Compatibility
This module is fully compatible with Cisco switches and routers and can be custom-coded for Huawei, Juniper, HPE, and other major networking platforms. It operates seamlessly with standard CWDM MUX/DEMUX equipment.
Why Choose This CWDM-SFP-XXXX-D Module?
- Enables multiple 1G channels over a single fiber pair
- Supports long-distance transmission up to 40km
- Real-time monitoring with DDM functionality
- Cost-effective solution for CWDM network expansion
- Fully tested for compatibility and performance
- OEM/ODM support including labeling and coding customization
- Reliable supply for telecom and enterprise deployments
Ordering Information
Part Number | Description |
|---|---|
CWDM-SFP-XXXX-40D-C | 1G CWDM SFP, LC, SMF, 40km, DDM (Specify wavelength) |
